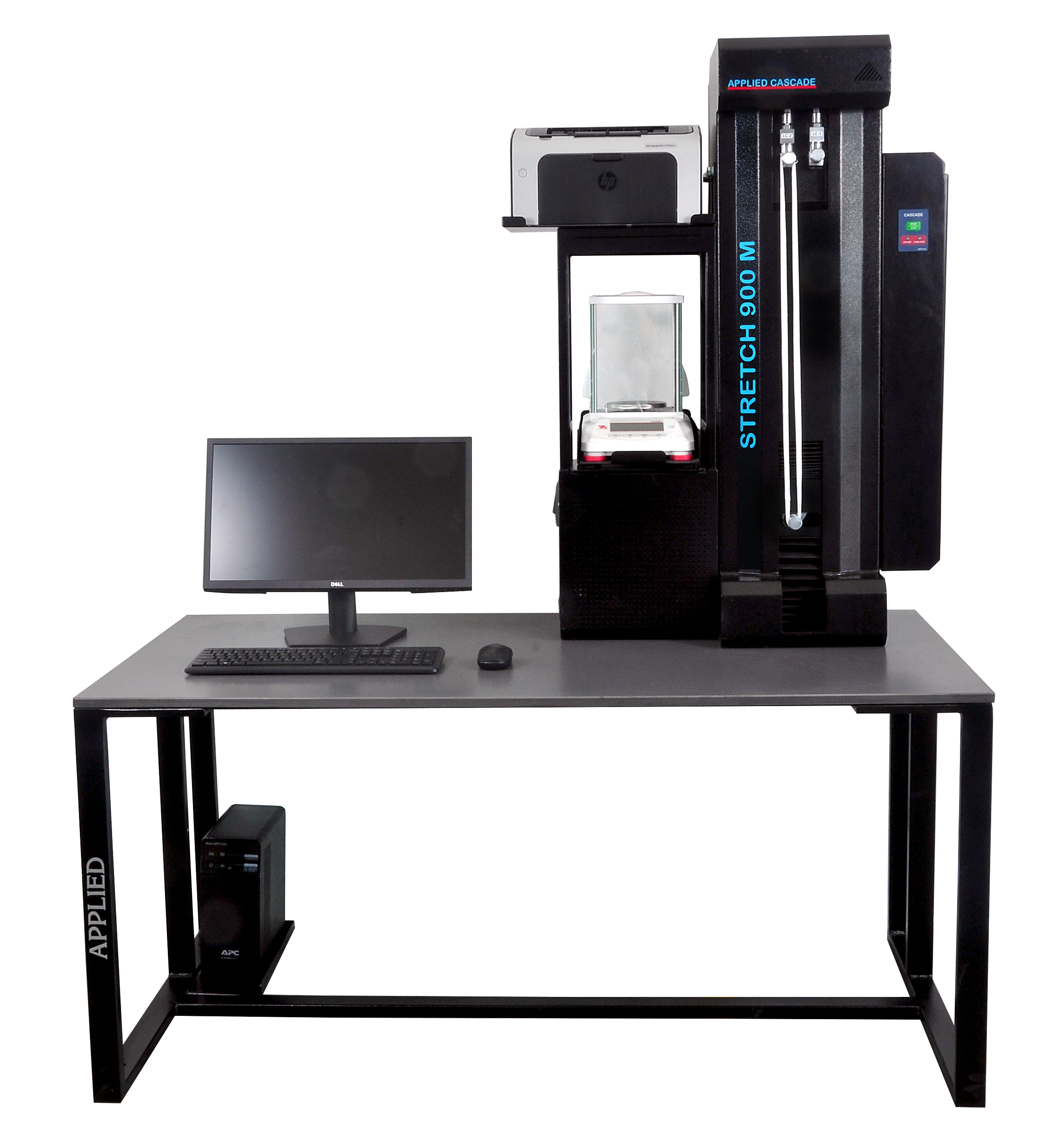

CASCADE CasLNX 900M
Cascade is a flagship product from Applied, serving the textile industry since 1990. It has become the de-facto standard for wrapping procedures in spinning mills, with installations in over 850 mills worldwide.
Cascade is a complete wrapping analysis system for spinning mills, extending beyond basic statistics to deliver accurate wrapping evaluation. It supports wrapping tests from Blowroom to Winding, ensuring consistent process control.
With a user-friendly interface and auto start – auto return of Lea Strength testing, Cascade enables easy operation, reliable results, and improved productivity.
Stretch 900 M
Compact Table Top Electronic Lea Tester
Cascade
CasLNX software for wrapping
- Compact Table Top Model – Small Footprint
- Electrically Operated
- Auto return of lower jaw after Lea breakage
- Computerised operator interface for ease of use
- Perfectly Compatible with Cascade System
- Dual Load for Higher Accuracy
- Sleek Model
Cascade – CasLNX software (Ubuntu OS)
Interfaces with balances through Ethernet
Interfaces with Stretch 900M through Ethernet
RH correction, wheel-change advice, A% reports, and process capability analysis
Cumulative critical data, including long-term CV for continuous process control
In-built RH sensor automatically corrects and provides RH-corrected CSP
Special sensor measures lea elongation and time-to-break for better analysis
Overall system can be connected to ERP systems
Stretch 900 M
Compact Table Top Electronic Lea Tester
- Compact Table Top Model – Small Footprint
- Electrically Operated
- Auto return after Lea breakage
- Computerised operator interface for ease of use
- Perfectly Compatible with Cascade System
- Dual Load for Higher Accuracy
- Sleek Model
Cascade
CasLNX software for wrapping
- Cascade – CasLNX software ubuntu OS
- Interface to our balances through Ethernet
- Interface to stretch 900M / Ethernet
- RH correction, wheel change advice, A% reports, and process capability analysis.
- Cumulative critical data including long-term CV for continuous process control.
CASCADE CasLNX – Technical Specifications
| Fibre | Cotton, Synthetic, Worsted Yarn | |
| Material | Sliver, Roving, Yarn | |
| Count Unit | Ne, Tex, Dtex, Ktex, Denier, NM, Nf | |
| Strength Unit | Lbs | |
| Tests | Department | Results |
| Regular Wrapping | All Departments | Count, Count CV%, RH Correction, Min & Max Range, Q95 Limits |
| Draw Frame, Ring Frame | Wheel Change Advice, A% Reports | |
| Ring Frame | Strength, Strength CV%, RH & Count Correction, CSP, CCSP Min & Max Range for Strength, Coefficient of Correlation between count & Strength | |
| Lap to Lap CV% | Blowroom | Lap Weight, Lap – Lap CV% |
| Waste Extraction | Comber | M/c & Delivery-wise Waste %, Deviation, Range, CV% |
| Stretch Test | Speed Frame | Full/Empty Bobbin Average & CV%, Overall Average & CV% |
| Within–Between Bobbin (Count) | Speed Frame, Ring Frame | Within Bobbin CV%, Between Bobbin CV%, Overall CV%, F-Ratio, Mean Sum of Squares |
| Within–Between Bobbin (Strength) | Ring Frame | Within Bobbin CV%, Between Bobbin CV%, Overall CV%, F-Ratio, Mean Sum of Squares |
| Adhoc Tests (No Storage) | All Departments | Count, Count CV%, Strength, Strength CV%, CSP, CCSP |
| Storage | Unlimited | |
| Reports | Wrapping Register for all departments, Period Reports for all departments, Micro Spinning | |
| Graphs | X-Bar, CV% for Individual tests & Periodic tests | |
| Electronic Balance | Make Accuracy Range Interface | Applied 0.001 g 220 g Ethernet |
| Electronic Lea Strength Tester | Type Mounting Accuracy Range Interface |
Electrical with auto return Compact Table Top ±0.25 Lbs 0–110 Lbs 0 – 550 lbs / Ethernet |
