AXE412

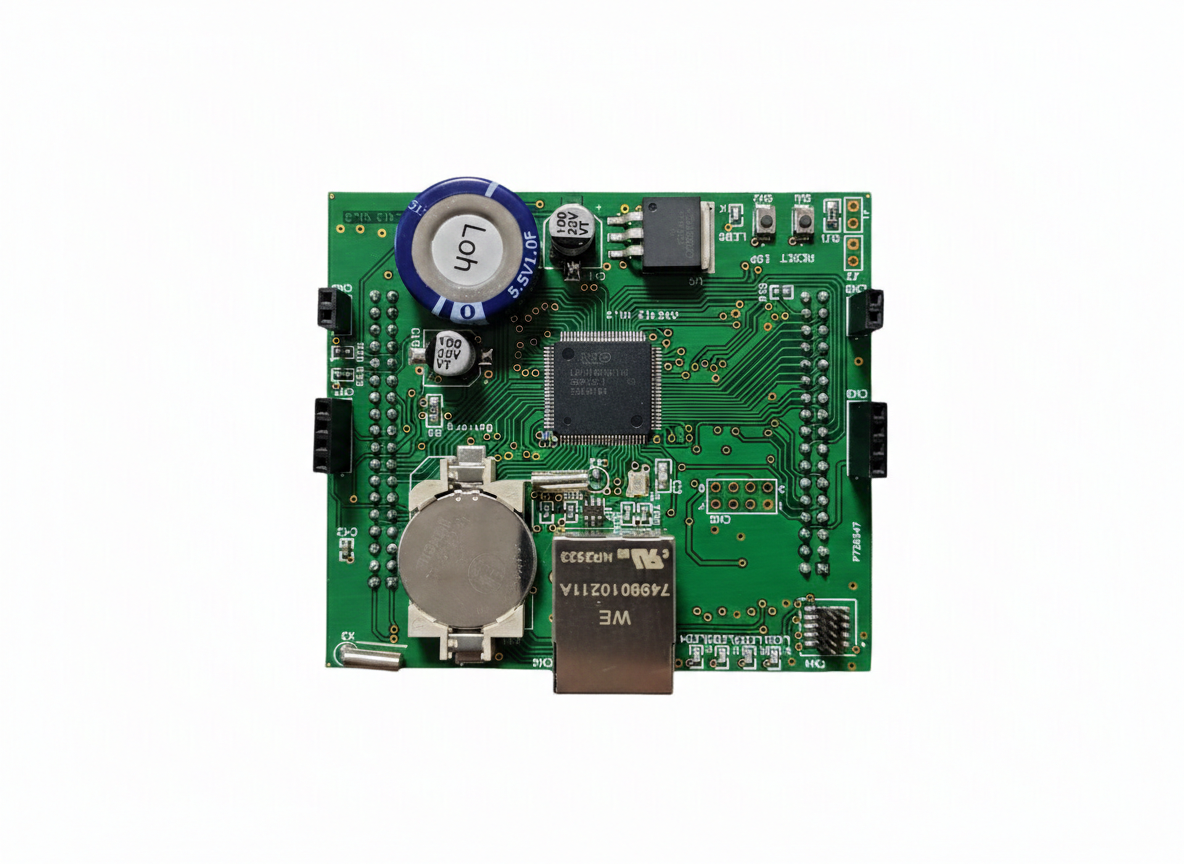

AXE412 is an Ethernet-based Digital I/O interface board designed for industrial automation applications. It provides high-density digital input/output with reliable wired communication and compact industrial-grade connectivity.
Features
- ARM-based Microcontroller.
- CPU frequency up to 120 MHz with 512 KB Flash memory
- 40 non-isolated Digital Inputs/Outputs
- Wi-Fi communication support (optional)
- RTC support & 64 KB data memory
- Ethernet TCP/IP (10 Mbps) with Modbus RTU
- 4 status LEDs for system indication
- Industrial compact plug-type connectors
- Input voltage range:3 V – 5 V DC
- Output sink current: up to 10 mA
